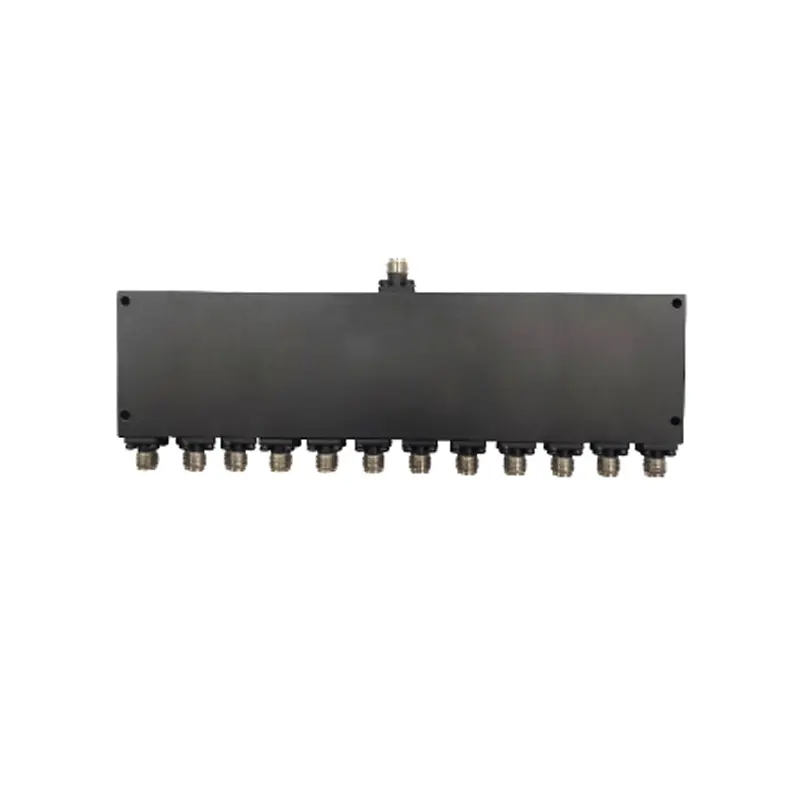

0.5GHz-40GHz 12-way Power Divider - RF Microwave Power Divider Cost-effective Choice
Characteristics and Application
XST's 12-way power divider sets a new benchmark in RF power distribution. Its excellent performance makes our 12-channel power divider achieve a comprehensive improvement in reliability and ease of use. And it has become the ideal choice for communication, navigation, radar, defence and military fields.
Product Principle
| Product Name | 12-Way Power Divider |
| Frequency Range | 26.5-40GHz |
| N | 12 |
| Insertion loss | 6dB |
| VSWR | ≤1.7 |
| Amplitude | ±1 |
| Phase | ±14 |
| Isolation | 16 |

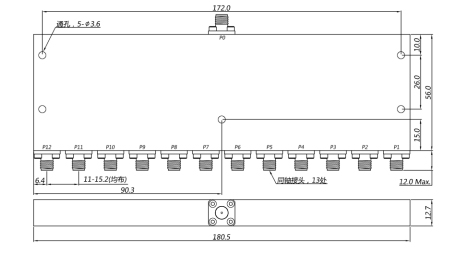

| Size | 28x13x10(L x W x H)mm |
| Impedance | 50 OHMS |
Technical Index
| N | Freq. Range（GHz） | IL（dB） | VSWR | Isolation（dB） | Amplitude（≤dB） | Phase | Conn. Type | Input Power（W） |
| 12 | 2-8 | 2.2 | 1.8 | 16 | ±0.5dB | ±8° | N-K | 20w |
| 12 | 8-13 | 2.2 | 1.5 | 15 | ±0.8dB | ±10° | SMA-K | 20w |
| 12 | 0.5-6 | 3 | 1.8 | 16 | ±0.5dB | ±5° | SMA-K | 20w |
| 12 | 0.5-8 | 3.5 | 2 | 15 | ±0.4dB | ±4° | SMA-K | 20W |
| 12 | 2-8 | 2 | 1.7 | 18 | ±0.8dB | ±10° | SMA-K | 20w |
| 12 | 3.0-3.5 | 1 | 1.7 | 20 | ±0.5dB | ±5° | SMA-K | 20w |
| 12 | 4.0-10.0 | 2.2 | 1.5 | 18 | ±0.4dB | ±4° | SMA-K | 20W |
| 12 | 6.0-18.0 | 2.2 | 1.8 | 16 | ±0.6dB | ±7° | SMA-K | 20w |
Customer Concerns
Technical Strength
Our power dividers offer wide frequency coverage, high power capacity, low insertion loss, low VSWR, and high isolation, effectively splitting high frequency signals into multiple paths and ensuring signal integrity and independence. Whether it's frequency range, power handling capacity, specifications, dimensions and connectors, we are committed to providing customised solutions that fully meet our customers' requirements.
Customised Service
Depending on the application requirements, we offer customised services for power dividers. Whether it is a specific frequency range, power capacity, VSWR, insertion loss, or dimensions and connectors, we can adapt and optimise them to your specific requirements. Our customised power dividers not only ensure high performance and reliability, they are also perfectly adapted to complex application scenarios. By choosing our customised service, you will get a tailor-made solution for all your needs for precise signal distribution.
Affordable Prices
We insist on price transparency without any hidden fees, so that you can see our price competitiveness at a glance in comparison. We believe that a transparent pricing policy not only wins the trust of our customers, but also builds long-term relationships. While we strive for the best price, our comprehensive after-sales service will ensure that you get the best value for your money. Our after-sales team is always ready to provide you with technical support and solutions to ensure that your system is always in the best condition.
XST is committed to providing high-quality power dividers and microwave devices. By choosing XST's 12-way power dividers, you will experience top-notch technology and unrivalled quality. No matter what the application scenario is, our power dividers provide stable and reliable performance, ensuring that your system will excel in a variety of application scenarios.
Thanks to your trust, if you have any questions please send them to us, you will experience our sincerity and strength.
