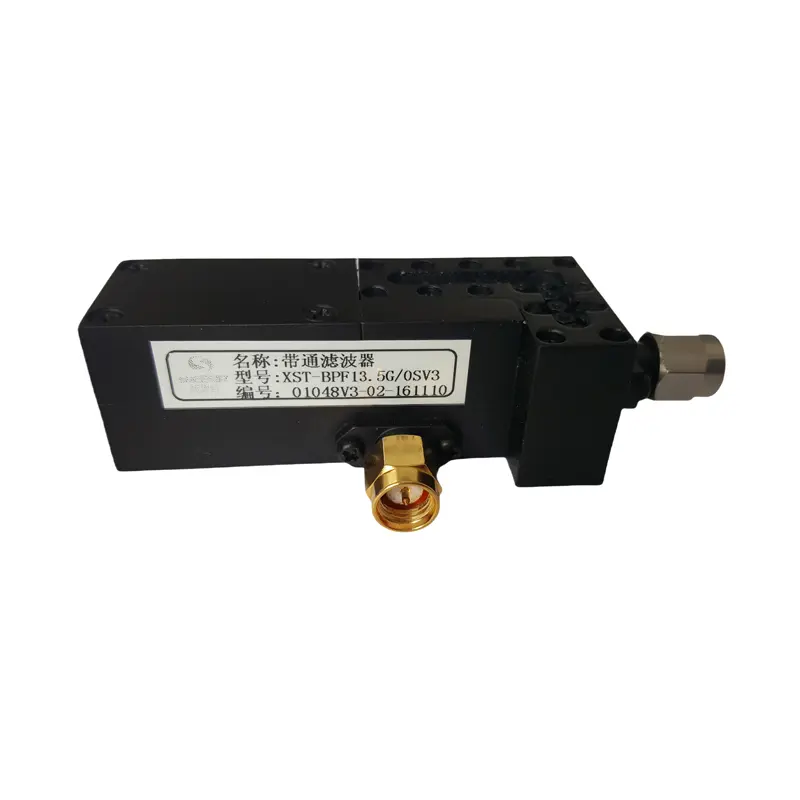

12.5 GHz Spot Frequency Filters - Multiple Precise Frequency Selectivity
Characteristics and Application
1. High Accuracy: Spot frequency filters are able to accurately select signals of specific frequencies for filter processing, with high frequency selectivity.
2. Real-time: Spot filters can process the input signal in real-time, which is suitable for applications that require fast response.
3. Adjustability: Some point filters have adjustable frequency and bandwidth, which can adapt to different signal processing needs.
4. Strong anti-interference ability: Point filters can effectively suppress non-target frequency interference signals and improve the anti-interference ability of the system.
XST produces point frequency filters with miniaturisation, low loss, low fluctuation, good temperature characteristics and good mechanical properties, the quality of which meets the requirements of military quality, and stable performance, factory price, and after-sales guarantee.
Please feel free to contact us if you have any requirements, we are happy to reply.
Technical indicators
| Product Name | Bandpass filter |
| Frequency Range | 12.5GHz (Spot Frequency) |
| -1dB bandwidth | 3MHz |
| Centre insertion loss | ≤2.6dB |
| VSWR | ≤1.2 |
| Out-of-band rejection | ≥70dB@ f0±500MHz |
| ≥75dB@ 20.25-40.5GHz | |
| port connector | SMA-J |
| Size | 60*25*20mm |
| Impedance | 50 OHMS |
Nots
Filter Operating Temperature Range: -40℃~+70
Filter Storage Temperature Range: -55℃~+85
Note that the case should be well grounded when using, otherwise it will affect the out-of-band rejection and flatness index.
If there is no port mark or other special instructions on the product, the product is a reciprocal device, and the inputs and outputs can be exchanged.
Input and output structure for the pin and table sticker structure products, the use of 20W soldering iron for welding, the temperature should be controlled at ≤ 280 ℃, time less than 5S.
