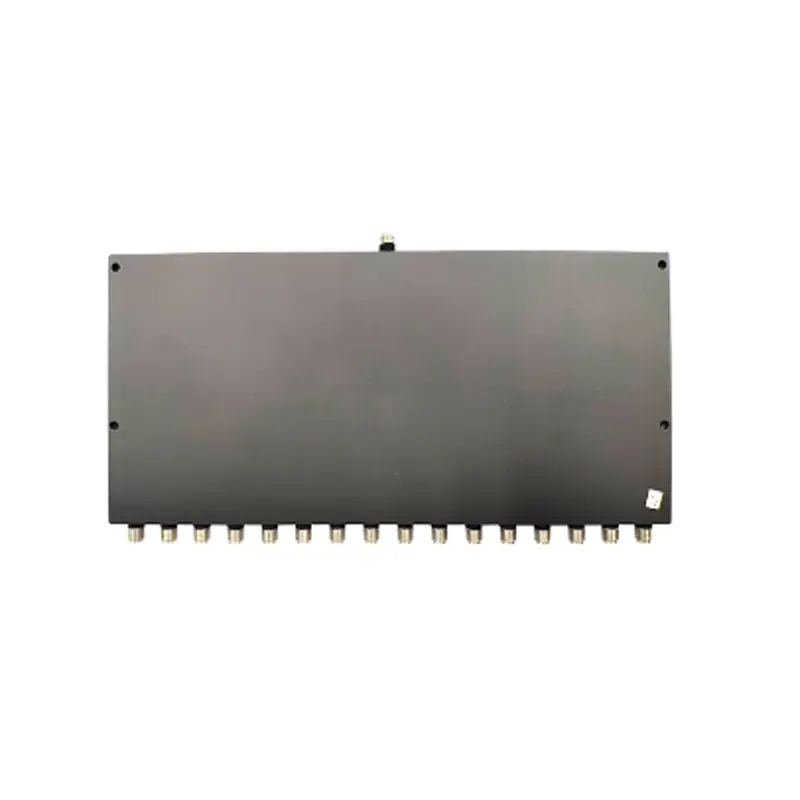

16-Channel Power Splitter DC-40GHz Microstrip/Strip Line Power Splitter Military Quality At A Good Price
Characteristics and Application
Available in both narrowband and wideband configurations and covering a frequency range of DC to 40 GHz, our 16-way power splitters are capable of handling higher input powers. Featuring an advanced microstrip or stripline design, the splitters are carefully optimised to ensure optimum performance in a wide range of applications. Whether in communication systems, radar systems, aerospace, defence and military, our power splitters provide excellent signal distribution and consistent performance.
Product Principle
| Product Name | 16-Way Power Divider | |
| Frequency Range | 40 -50GHz | 50 -67GHz |
| N | 16 | 16 |
| Insertion loss | ≤6.4 | ≤8.3 |
| VSWR | ≤1.9 | ≤1.9 |
| Amplitude | ±0.9 | ±1.1 |
| Phase | ±12 | ±14 |
| connector | 1.85mm | |

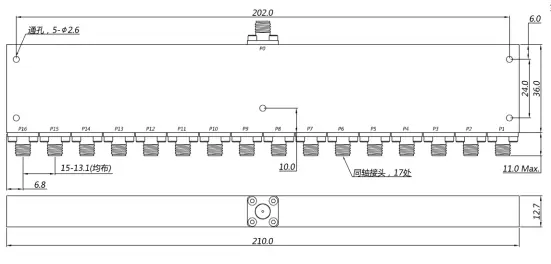

| Size | 36x210x12.7(L x W x H) | |
| Power | W(Max.) CW：FOR 12 REV 1 Peak：1000 | |
Technical Index
| N | Freq. Range（GHz） | IL（dB） | VSWR | Isolation（dB） | Amplitude（≤dB） | Phase | Conn. Type | Power（W） |
| 16 | 0.5-2 | 3 | 1.6 | 18 | ±0.5dB | ±5° | TNC-K | 10 W |
| 16 | 0.5-2.7 | 3 | 1.65 | 15 | ±0.4dB | ±4° | SMA-K | 10 W |
| 16 | 6-18 | 3.5 | 1.6 | 18 | ±0.6dB | ±8° | SMA-K | 10 W |
| 16 | 6-26.5 | 4 | 1.7 | 16 | ±0.7dB | ±8° | SMA-K | 10 W |
| 16 | 10-26.5 | 4 | 1.7 | 17 | ±0.6dB | ±6° | SMA-K | 10 W |
| 16 | 10-40 | 4.9 | 1.8 | 16 | ±0.6dB | ±8° | 2.92mm-k | 10 W |
| 16 | 18-26.5 | 3.6 | 1.6 | 18 | ±0.5dB | ±6° | SMA-K | 10 W |
| 16 | 18-40 | 5 | 1.5 | 17 | ±0.6dB | ±7° | 2.92mm-k | 10 W |
Customer Concerns
Company Profile
XST is a leading manufacturer specialising in high quality power dividers. We pride ourselves on superior product quality and a wide range of customisation options to meet the unique needs of our customers. Thanks to our stringent quality control and cost-effective measures, our power dividers not only provide excellent performance, but are also competitively priced, so when you choose XST, you get a solution that combines high performance, reliability, and cost-effectiveness.
Customisation
We offer a comprehensive power dividers customisation service. Whether it's a specific frequency range, power capacity, VSWR, insertion loss, or dimensions and connector type, we can tailor it to your specific requirements.
Through precise design and strict quality control, we ensure that every detail of the power dividers meets your expectations and fulfils all your needs for accurate signal distribution.
Our customised power dividers are of exceptional quality, consistent and reliable performance, and are used in a wide range of applications. No matter how unique or demanding your project is, we have the right power dividers for the job.
Price and value
XST understands that every customer faces the challenge of budget control when purchasing products, for this reason, XST provides the most cost-effective Power Splitters Factory Direct Price, our price competitiveness stems from the ultimate pursuit of efficiency and strict cost control system. At the same time, we also know that customers are not only concerned about the price of the product, but also the quality of the product and after-sales service when choosing suppliers. We are always customer-centred to ensure that every detail meets your expectations, so that you can enjoy unlimited high-quality products and services within a limited budget.
XST is a high-quality power divider manufacturing factory dedicated to providing customers with power divider solutions that are perfectly suited to their needs. We pride ourselves on our superior quality, affordable prices and complete service. Our products not only provide high performance and reliability, but also excel in a variety of complex application scenarios.
If you need, please send your needs or questions, we will never betray your trust and choice.
