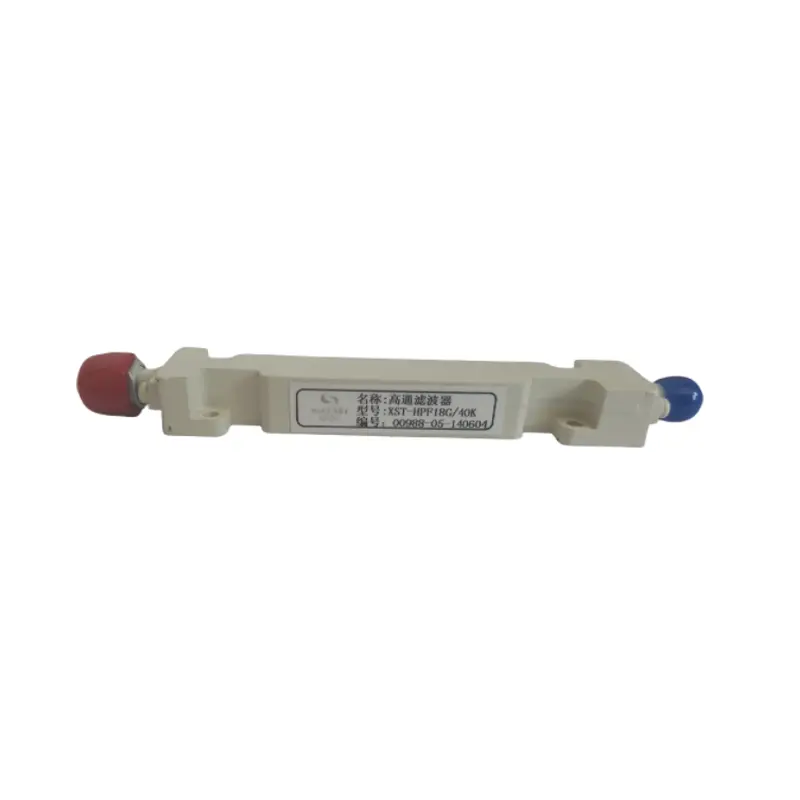

18GHz -40GHz High Pass Filters/Microstrip Line Filters - Flexible Customisation with Multiple Specifications
Characteristics and Application
18GHz -40GHz filter has the following advantages:
1. high-frequency application support: very suitable for 5G millimetre wave communications, satellite communications, radar systems and other high-end applications.
3. High performance index: low insertion loss, high rejection and good frequency selectivity
4. Technical diversity: providing customised solutions for different applications.
5. Design innovation: using advanced design methods to achieve more optimised filter performance.
6. Material innovation: using new high-performance materials to achieve higher Q factor and better temperature stability.
7. Manufacturing process: Precision manufacturing process is adopted to ensure the consistency and reliability of the filter at high frequencies.
8. Wide range of applications: suitable for areas requiring high-frequency signal processing.
Technical indicators
| Product Name | Bandpass filter |
| Frequency Range | 18GHz -40GHz |
| Insertion loss | ≤1.5dB |
| VSWR | ≤1.8 |
| In-band fluctuation | 1dB |
| Out-of-band rejection5 | ≥30dB@ 17.5 |
| port connector | 2.92mm-K (one yin and one yang) |
| Size | 80*16.2*10mm |
| Impedance | 50 OHMS |
Nots
Avoid overheating: HF equipment may generate more heat, and proper heat dissipation measures are required to avoid overheating and to ensure stable operation of the equipment.
Avoid signal obstruction: Ensure that there is no physical or electromagnetic obstruction in the signal propagation path, which may seriously affect the signal quality.
Avoid improper cables and connectors: Use cables and connectors suitable for high-frequency applications to minimise signal loss and reflection.
Avoid interference with other equipment: Ensure that the equipment complies with electromagnetic compatibility (EMC) standards to avoid interference with other electronic equipment.
