18GHz -40GHz High Power Waveguide Load/High Stability, High Reliability/Various Configurations
product description

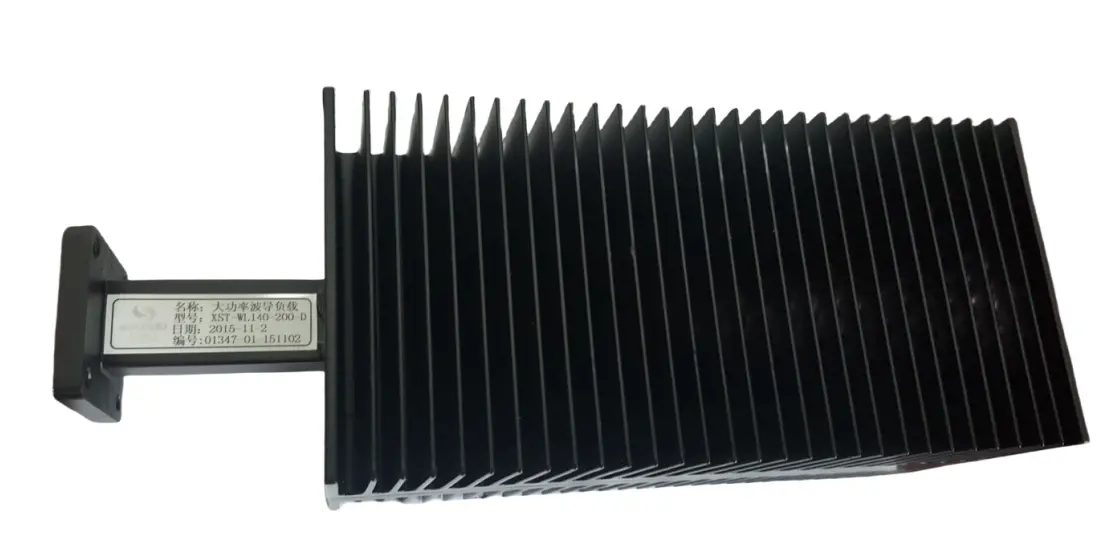

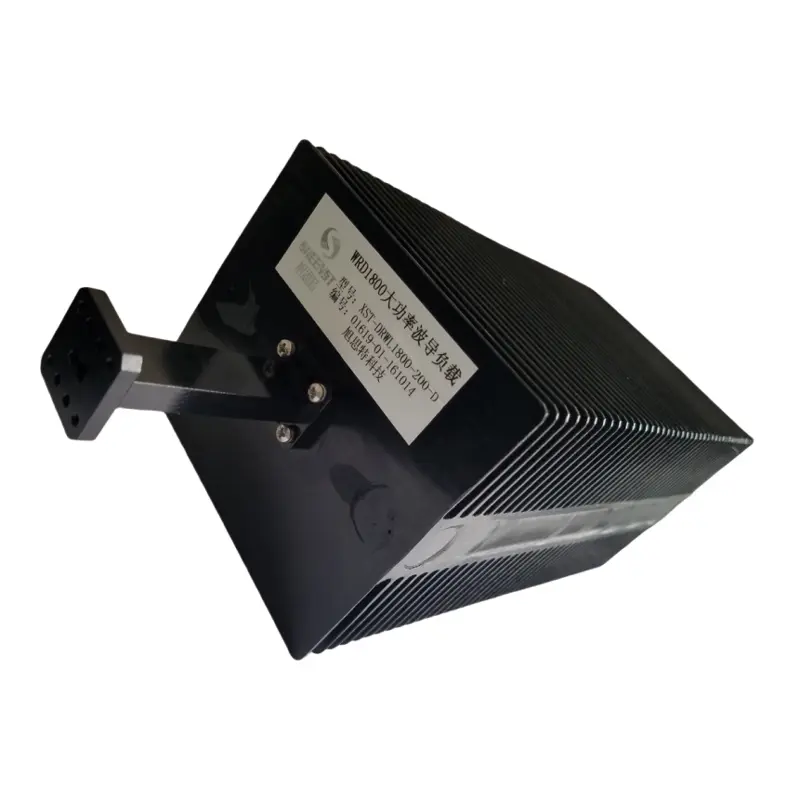

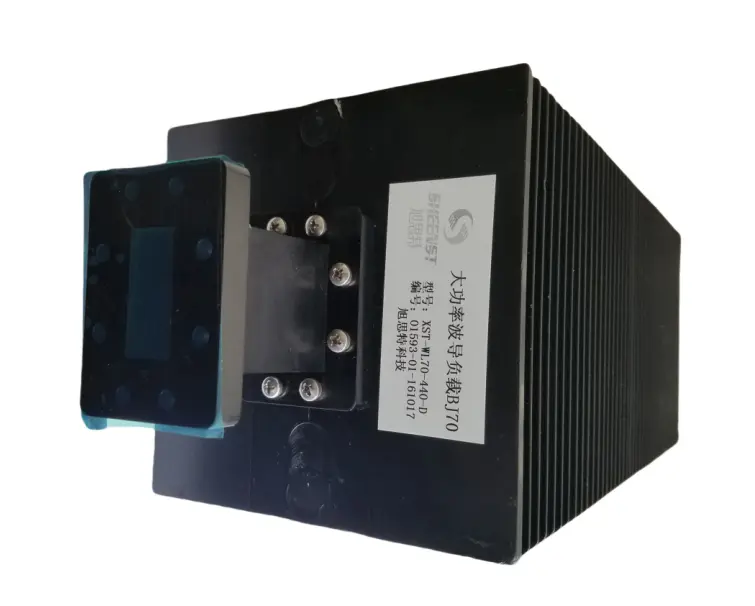

Our high power waveguide loads exhibit excellent performance characteristics in terms of design, functionality, durability and range of applications. Our high power waveguide loads are designed with a combination of straight waveguide and waveguide load cavities with high temperature resistant, high absorption materials to ensure good wave absorption performance and stability in high power environments. Our high power waveguide loads have high power absorption capability, low VSWR, stability (impedance, phase, etc.) and reliability. These characteristics have led to the widespread use and acceptance of high power waveguide loads in a wide range of applications in microwave technology, communications technology and industry.
Technical indicators
| Model | Freq. Range（GHz） | VSWR | Power (W) | Conn. Type | Flange | |
| XST-WL9+L+D | 0.75-1.15 | 1.1-1.5 | 1000 | WR975 | BJ9 | FDP/FDM |
| XST- WL12+L+D | 0.96-1.46 | 1.1-1.5 | 1000 | WR770 | BJ12 | FDP/FDM |
| XST- WL14+L+D | 1.13-1.73 | 1.1-1.5 | 1000 | WR650 | BJ14 | FDP/FDM |
| XST- WL18+L+D | 1.45-2.20 | 1.1-1.5 | 1000 | WR510 | BJ18 | FDP/FDM |
| XST- WL22+L+D | 1.72-2.61 | 1.1-1.5 | 1000 | WR430 | BJ22 | FDP/FDM |
| XST- WL26+L+D | 2.17-3.30 | 1.1-1.5 | 1000 | WR340 | BJ26 | FDP/FDM |
| XST- WL32+L+D | 2.60-3.95 | 1.1-1.5 | 1000 | WR284 | BJ32 | FDP/FDM |
| XST- WL40+L+D | 3.22-4.90 | 1.1-1.5 | 1000 | WR229 | BJ40 | FDP/FDM |
| XST- WL48+L+D | 3.94-5.99 | 1.1-1.5 | 1000 | WR187 | BJ48 | FDP/FDM |
| XST- WL58+L+D | 4.64-7.05 | 1.1-1.5 | 1000 | WR159 | BJ58 | FDP/FDM |
| XST- WL70+L+D | 5.38-8.17 | 1.1-1.5 | 1000 | WR137 | BJ70 | FDP/FDM |
| XST- WL84+L+D | 6.57-9.99 | 1.1-1.5 | 1000 | WR112 | BJ84 | FBP/FBM/FBE |
| XST- WL100+L+D | 8.20-12.4 | 1.1-1.5 | 1000 | WR90 | BJ100 | FBP/FBM/FBE |
| XST- WL120+L+D | 9.84-15.0 | 1.1-1.5 | 1000 | WR75 | BJ120 | FBP/FBM/FBE |
| XST- WL140+L+D | 11.9-18.0 | 1.1-1.5 | 1000 | WR62 | BJ140 | FBP/FBM/FBE |
| XST- WL180+L+D | 14.5-22.0 | 1.1-1.5 | 300 | WR51 | BJ180 | FBP/FBM/FBE |
| XST- WL220+L+D | 17.6-26.7 | 1.2-1.5 | 300 | WR42 | BJ220 | FBP/FBM/FBE |
| XST- WL260+L+D | 21.7-33.0 | 1.2-1.5 | 300 | WR34 | BJ260 | FBP/FBM/FBE |
| XST- WL320+L+D | 26.5-40.0 | 1.2-1.5 | 100 | WR28 | BJ320 | FBP/FBM/FBE |
| XST- WL400+L+D | 32.9-50.1 | 1.2-1.5 | 100 | WR22 | BJ400 | FUGP |
| XST- WL500+L+D | 39.2-59.6 | 1.2-1.5 | 100 | WR19 | BJ500 | FUGP |
