300MHz-40GHz Waveguide Matching Load/Military Quality/Ultra Cost Effective Waveguide Load
product description
Remarks and other parameters:
Impedance environment: meet 50Ω system
Surface treatment: spray paint black
Working Temperature: -40℃~+70℃
Storage temperature：-55℃~+85℃
Executive standard: meet SJ20527-2003
Quality grade: Industrial grade
Material: Copper (H62)

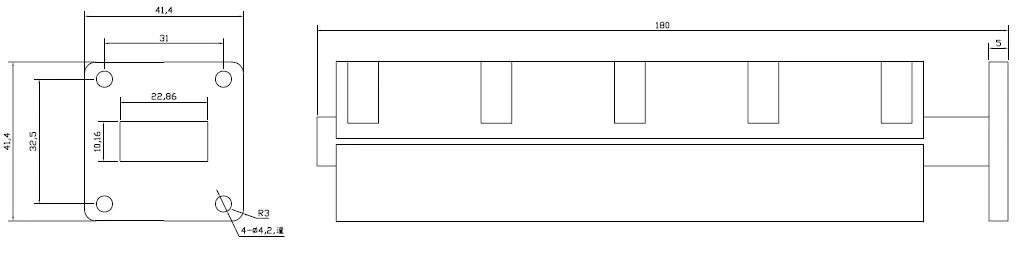

Unit: mm*mm*mm
Installation form is through-hole;
Unnotched size tolerance: ±0.3mm;
Installation size tolerance: ± 0.1mm
Technical indicators
| Model | Freq. Range（GHz） | VSWR | Power (W) | Conn. Type | Flange | |
| XST-WL9+L | 0.75-1.15 | 1.03-1.25 | 10-2000 | WR975 | BJ9 | FDP/FDM |
| XST- WL12+L | 0.96-1.46 | 1.03-1.25 | 10-2000 | WR770 | BJ12 | FDP/FDM |
| XST- WL14+L | 1.13-1.73 | 1.03-1.25 | 10-2000 | WR650 | BJ14 | FDP/FDM |
| XST- WL18+L | 1.45-2.20 | 1.03-1.25 | 10-2000 | WR510 | BJ18 | FDP/FDM |
| XST- WL22+L | 1.72-2.61 | 1.03-1.25 | 10-2000 | WR430 | BJ22 | FDP/FDM |
| XST- WL26+L | 2.17-3.30 | 1.03-1.25 | 10-2000 | WR340 | BJ26 | FDP/FDM |
| XST- WL32+L | 2.60-3.95 | 1.03-1.25 | 10-2000 | WR284 | BJ32 | FDP/FDM |
| XST- WL40+L | 3.22-4.90 | 1.03-1.25 | 10-2000 | WR229 | BJ40 | FDP/FDM |
| XST- WL48+L | 3.94-5.99 | 1.03-1.25 | 10-300 | WR187 | BJ48 | FDP/FDM |
| XST- WL58+L | 4.64-7.05 | 1.03-1.25 | 10-300 | WR159 | BJ58 | FDP/FDM |
| XST- WL70+L | 5.38-8.17 | 1.03-1.25 | 10-300 | WR137 | BJ70 | FDP/FDM |
| XST- WL84+L | 6.57-9.99 | 1.03-1.25 | 10-300 | WR112 | BJ84 | FBP/FBM/FBE |
| XST- WL100+L | 8.20-12.4 | 1.03-1.25 | 10-300 | WR90 | BJ100 | FBP/FBM/FBE |
| XST- WL120+L | 9.84-15.0 | 1.03-1.25 | 10-300 | WR75 | BJ120 | FBP/FBM/FBE |
| XST- WL140+L | 11.9-18.0 | 1.03-1.25 | 10-300 | WR62 | BJ140 | FBP/FBM/FBE |
| XST- WL180+L | 14.5-22.0 | 1.03-1.25 | 10-300 | WR51 | BJ180 | FBP/FBM/FBE |
| XST- WL220+L | 17.6-26.7 | 1.03-1.25 | 10-300 | WR42 | BJ220 | FBP/FBM/FBE |
| XST- WL260+L | 21.7-33.0 | 1.03-1.25 | 10-300 | WR34 | BJ260 | FBP/FBM/FBE |
| XST- WL320+L | 26.5-40.0 | 1.03-1.25 | 10-300 | WR28 | BJ320 | FBP/FBM/FBE |
Nots
Ultimate performance
After more than ten years of dedication and innovation, our company has grown into an industry leader in the field of matched loads, integrating R&D strength, precision manufacturing and all-round testing. We have a relentless pursuit of excellence in matching loads and have built a complete industrial chain from innovative ideas to finished products. Here, every innovative idea is meticulously crafted by our senior R&D team and transformed into market-leading product designs.
In our highly automated intelligent manufacturing plant, these designs are realised with precision and accuracy, and each production step incorporates our extreme pursuit of matching load quality. Through a series of rigorous testing processes, we ensure that every Waveguide Matched Load exceeds our customers' expectations and is delivered to the global market with zero defects.

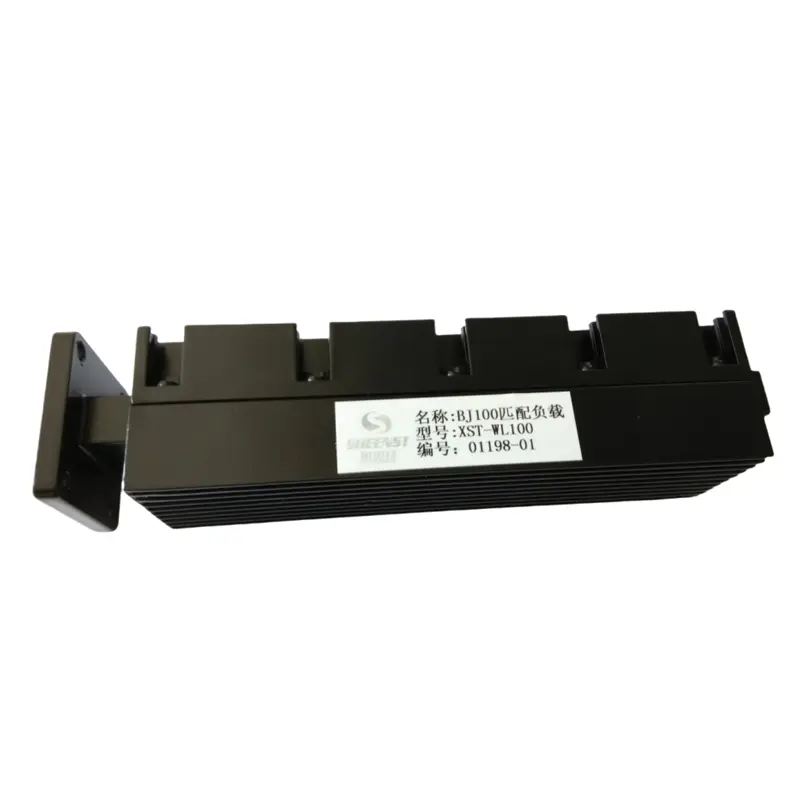

Our matched loads, such as this BJ100 matched load, demonstrate our pursuit of high performance, with a frequency range of 8.6GHz-9.5GHz, a VSWR control of 1.1Max, an insertion loss of only 0.35dB, an average power of 5W, and a peak power of up to 1,000W, which reflects our dedication to excellence in materials and design.
Our matched loads, which offer a wide range of choices such as precision and economy models, cover the frequency range of 0.3-40GHz, meeting the needs of different customers.
The best of the best, at an affordable price
We consistently use the highest quality raw materials and ensure that every matched load undergoes rigorous quality control processes before it leaves our factory to ensure its superior durability and stability. We are not only committed to the high quality of our matched loads, but also to reducing costs through lean manufacturing and volume purchasing strategies to provide our customers with highly competitive prices.
According to extensive feedback from our customers, our matched loads outperform similar products in the market in terms of performance and price, and are regarded as the best in terms of price/performance ratio. We firmly believe that through unremitting efforts and continuous innovation, our matched loads can bring long-term value and worry-free usage experience to our customers. Choosing us is choosing the double guarantee of reliability and economy, fine products are not expensive, good value for money.
Reliable technology partner
Thanks to our first-class technological competence, diverse product range and attractive pricing, our company has become the partner of choice for many industry leaders. Whether multinational corporations, innovation labs or high-end manufacturing, they trust us as their supplier of RF components and microwave solutions. This trust and recognition is the driving force behind our continuous innovation and pursuit of excellence.
We promise that you will experience unrivalled technical support and customer care through our professional services and superior products. We look forward to working with you to create a brilliant future. Contact us now and let us be your reliable technical partner!
