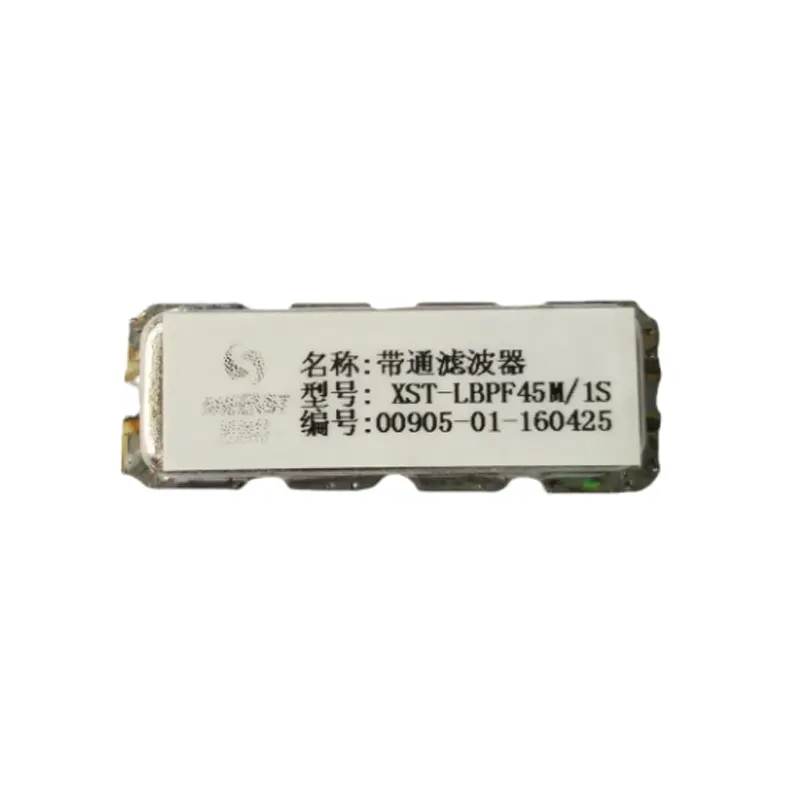

45MHz Bandpass Filter / Cavity Filter Excellent Performance
Characteristics and Application
The filter has the following performance with a frequency coverage of 45MHz and a -1dB bandwidth of 1MHz:
1. high selectivity: can work in a very narrow frequency range, providing a high degree of selectivity, so as to effectively suppress signals at non-target frequencies .
2. precise frequency control: can be accurately positioned at a specific operating frequency, which is very important for applications requiring strict frequency control.
3. low insertion loss: less impact on the signal passing through, to maintain high signal quality.
Good bandwidth attenuation characteristics: Provides sufficient attenuation to effectively isolate and suppress unwanted signals and reduce interference.
4. suitable for high-frequency applications: suitable for high-frequency signal processing, such as in radio communications, satellite communications and other applications .
5. miniaturised design: miniaturised circuit components can be used, helping to reduce the size and weight of the equipment.
xst has won the unanimous praise of customers in overseas markets with its excellent technical strength, united and innovative team, and responsible after-sales service. We are looking forward to becoming a long-term partner with you.
Technical indicators
| Product Name | Bandpass filter |
| Frequency Range | 45MHz |
| -1dB bandwidth | 1MHz (point frequency use) |
| Insertion loss | ≤6dB |
| VSWR | ≤1.5 |
| Out-of-band rejection | ≥40dB@f0±10MHz |
| ≥50dB@ f0±15MHz | |
| port connector | Surface Mount |
| Size | 33*12*8mm |
| Impedance | 50 OHMS |
Nots
The filter should be in an environment free from acidic, alkaline or other harmful gases.
The filters should be kept away from strong magnetic fields or ferromagnetic substances.
Filters should be kept away from light: filters should be kept away from direct sunlight as much as possible.
Filters against dust and vibration: filters should be protected from dust and debris inside the filter, and from vibration and shock.
Power supply stability: Ensure that the power supply is stable to minimise the effect of power supply noise on the performance of the filter.
