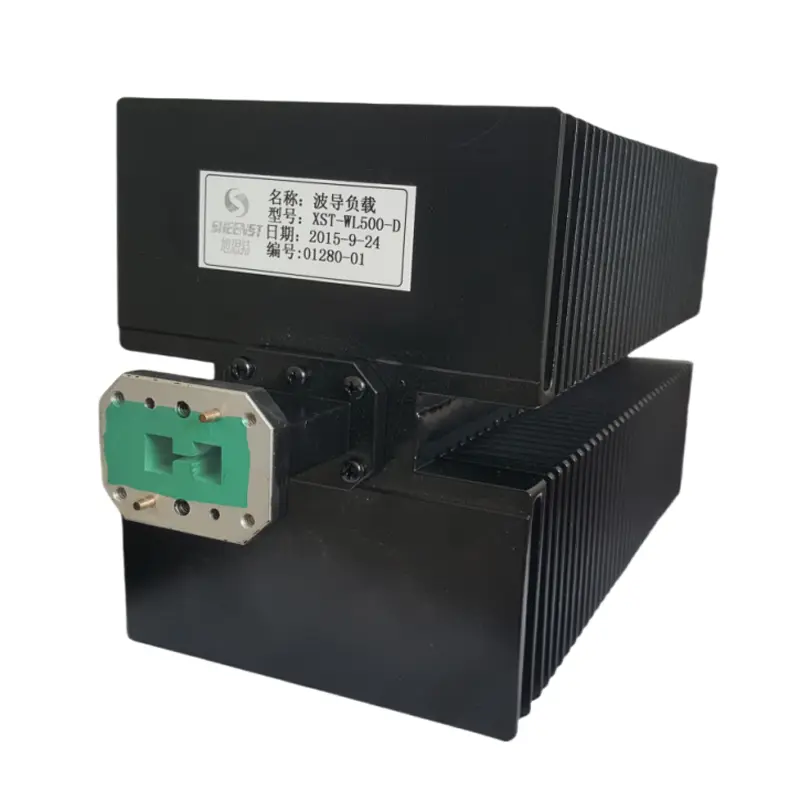

750MHz-60GHz waveguide matched load/waveguide load/high absorption, low reflection

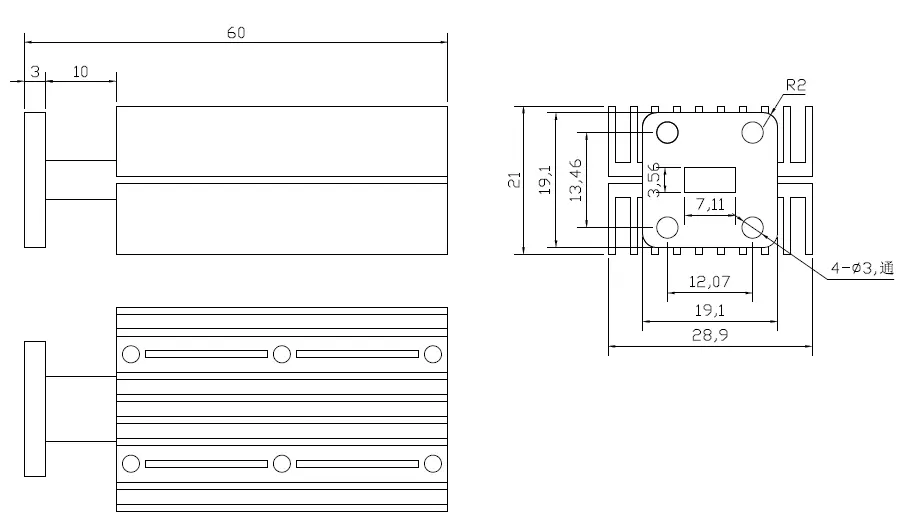

product description
A Waveguide Matched Load is a device used to optimise the efficiency of energy transfer between a waveguide transmission line and a load. Waveguide matched loads are based on the properties of absorbing materials. By designing suitable absorbing materials and structures, we maximise the absorption of electromagnetic wave energy incident on the load while reducing or avoiding reflections. The size and shape of the absorbing material is carefully designed to ensure that it provides good absorption in the operating frequency band.
Technical indicators
| Model | Freq. Range（GHz） | VSWR | Power (W) | Conn. Type | Flange | |
| XST-WL9+L | 0.75-1.15 | 1.03-1.25 | 10-2000 | WR975 | BJ9 | FDP/FDM |
| XST- WL12+L | 0.96-1.46 | 1.03-1.25 | 10-2000 | WR770 | BJ12 | FDP/FDM |
| XST- WL14+L | 1.13-1.73 | 1.03-1.25 | 10-2000 | WR650 | BJ14 | FDP/FDM |
| XST- WL18+L | 1.45-2.20 | 1.03-1.25 | 10-2000 | WR510 | BJ18 | FDP/FDM |
| XST- WL22+L | 1.72-2.61 | 1.03-1.25 | 10-2000 | WR430 | BJ22 | FDP/FDM |
| XST- WL26+L | 2.17-3.30 | 1.03-1.25 | 10-2000 | WR340 | BJ26 | FDP/FDM |
| XST- WL32+L | 2.60-3.95 | 1.03-1.25 | 10-2000 | WR284 | BJ32 | FDP/FDM |
| XST- WL40+L | 3.22-4.90 | 1.03-1.25 | 10-2000 | WR229 | BJ40 | FDP/FDM |
| XST- WL48+L | 3.94-5.99 | 1.03-1.25 | 10-300 | WR187 | BJ48 | FDP/FDM |
| XST- WL58+L | 4.64-7.05 | 1.03-1.25 | 10-300 | WR159 | BJ58 | FDP/FDM |
| XST- WL70+L | 5.38-8.17 | 1.03-1.25 | 10-300 | WR137 | BJ70 | FDP/FDM |
| XST- WL84+L | 6.57-9.99 | 1.03-1.25 | 10-300 | WR112 | BJ84 | FBP/FBM/FBE |
| XST- WL100+L | 8.20-12.4 | 1.03-1.25 | 10-300 | WR90 | BJ100 | FBP/FBM/FBE |
| XST- WL120+L | 9.84-15.0 | 1.03-1.25 | 10-300 | WR75 | BJ120 | FBP/FBM/FBE |
| XST- WL140+L | 11.9-18.0 | 1.03-1.25 | 10-300 | WR62 | BJ140 | FBP/FBM/FBE |
| XST- WL180+L | 14.5-22.0 | 1.03-1.25 | 10-300 | WR51 | BJ180 | FBP/FBM/FBE |
| XST- WL220+L | 17.6-26.7 | 1.03-1.25 | 10-300 | WR42 | BJ220 | FBP/FBM/FBE |
| XST- WL260+L | 21.7-33.0 | 1.03-1.25 | 10-300 | WR34 | BJ260 | FBP/FBM/FBE |
| XST- WL320+L | 26.5-40.0 | 1.03-1.25 | 10-300 | WR28 | BJ320 | FBP/FBM/FBE |

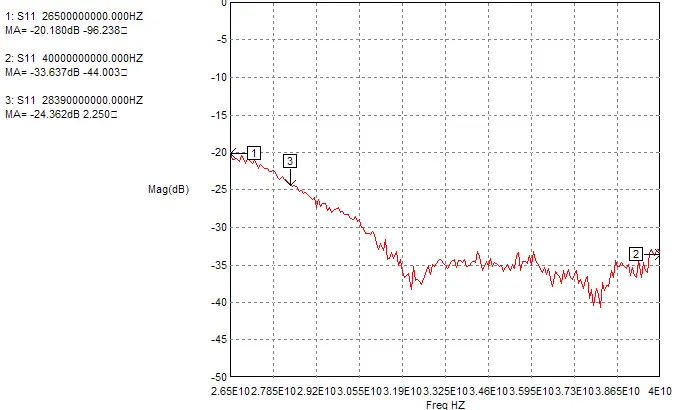

Nots
Superior Performance
XST's waveguide matched loads provide consistent absorption performance over a wide frequency band (500MHz to 60GHz). Our waveguide matched loads absorb most, if not all, of the incident electromagnetic energy, ensuring the energy efficiency of the transmission system. By carefully designing the absorbing material and structure, the Waveguide Matched Load is able to significantly reduce the energy of reflected waves, avoiding interference and damage to the transmission system caused by reflected waves. Our waveguide matched loads are made of high temperature and corrosion resistant materials, which can maintain stable performance under harsh working environments. Waveguide matched loads are designed and fabricated to be easy to implement and apply in various transmission systems. These excellent properties make our waveguide matched loads widely used in modern communications, radar, satellite communications and microwave ovens.
XST Advantage
As an industry-leading innovative manufacturer of microwave components, XST is deeply committed to the independent research and development and production of power dividers, combiners, precision filters, high-performance couplers and power amplifiers, converters, matched loads, and other microwave products, which have demonstrated their excellent application value and wide acclaim in various fields, such as wireless communications, satellite communications, radar detection, and radio frequency testing.
XST has built a closed-loop production system, from the exploration of cutting-edge technology to the detailed R&D of products, and then to the strict manufacturing process and comprehensive testing, each step of which is efficiently and collaboratively completed within the company, which not only ensures the absolute consistency of the product performance, but also greatly improves the production efficiency and the long-term reliability of the products.
Our strong manufacturing capabilities, equipped with advanced production equipment and production lines, allow us to respond to both mass customised production and urgent orders with ease, ensuring that our products respond quickly to market demand and achieve efficient production and fast delivery.
XST has found the perfect balance between cost control and quality assurance. We have established a strict quality management system and cost optimisation strategy, and are committed to providing excellent product quality while maintaining competitive pricing, so that our customers can enjoy microwave solutions at the top of the price-performance ratio.
We also offer a flexible and versatile customisation service. Whether it's a standard microwave component or a highly specialised customised requirement, our dedicated team can understand and implement it with precision, ensuring that both the electrical and mechanical properties of the product are perfectly tailored to your specific needs.
Win-Win Co-operation
XST, with its impeccable product quality, flexible and diversified customised services and attractive pricing strategy in the market, has established an excellent reputation in the industry and won the trust and praise of many customers, including large-scale telecommunication enterprises, top scientific research institutes and rigorous military units.
We know that every delivery is not only the transfer of products, but also the transfer of responsibility and deepening of trust.
We sincerely invite you to contact us at any time, whether you want to consult product information, discuss co-operation matters, or need us to provide professional advice, XST will be the fastest speed, the most professional attitude, to respond to your every need. Let us work hand in hand to create the future and become your most solid and reliable partner!
