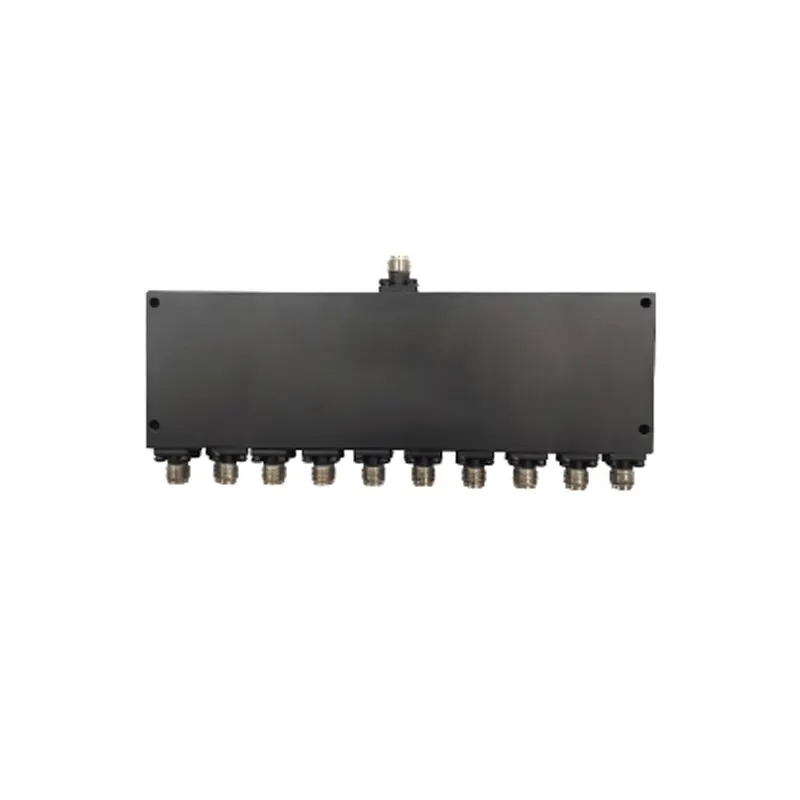

Custom-Made 0.5GHz-46.5GHz 10-Channel Power Divider--Excellent Quality and Affordable Choice!
Characteristics and Application
XST 10-way power splitters can cover frequencies from a few hundred MHz to tens of GHz to suit different applications. Our 10-channel power splitter has low loss and high isolation for accurate and reliable transmission of signals and prevents interferences between the 10 output ports. In addition, it has excellent directivity to ensure accurate signal distribution even in harsh environments.
Product Principle
| Product Name | 10-Way Power Divider | |
| Frequency Range | 18-26.5GHz | 26.5-40GHz |
| N | 10 | 10 |
| Insertion loss | ≤3.6dB | ≤4.9dB |
| VSWR | ≤1.7 | ≤1.8 |
| Amplitude | ±1 | ±1.2 |
| Phase | ±11 | ±14 |
| Isolation | 16 | 18 |

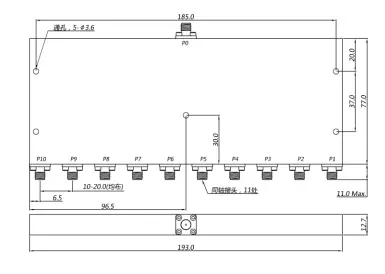

| Size | 77.0x193x12.7 (L x W x H) | |
| connector | 2.92mm | |
| Power | W(Max.) CW：FOR 20 REV 2 Peak：3000 | |
Technical Index
| N | Freq. Range（GHz） | IL（dB） | VSWR | Isolation（dB） | Amplitude（≤dB） | Phase | Conn. Type | Power（W） |
| 10 | 0.5-3GHz | 2 | 1.8 | 17 | ±0.4dB | ±4° | SMA-K | 20W |
| 10 | 0.5-6GHz | 2.5 | 2 | 18 | ±0.6dB | ±7° | SMA-K | 20w |
| 10 | 0.8-4.2GHz | 2.5 | 1.7 | 18 | ±0.5dB | ±5° | SMA-K | 20w |
| 10 | 29.2-30.4 | 1.5 | 1.5 | 16 | ±0.4dB | ±4° | BJ320flange | 20W |
| 10 | 800-900MHz | 2 | 2 | 20 | ±0.6dB | ±7° | N-K | 20w |
| 10 | 29.2-30.4 | 1.5 | 1.5 | 15 | ±0.5dB | ±5° | BJ320flange | 20w |
| 10 | 45.5-46.5 | 2 | 2 | 15 | ±0.5dB | ±4° | BJ400flange | 20w |
Customer Concerns
Outstanding performance
Our 10-channel power splitter has a wide range of frequency compatibility, whether it is low-frequency band or high-frequency band signal processing, can flexibly respond to meet the diverse needs of various industries. The compact design allows for flexible installation in a variety of environments and efficient use of space.
Despite its compact size, it has excellent performance in signal transmission, its low loss ensures that signal loss is minimised, and its low VSWR reduces signal reflections, maintains signal integrity and reduces potential distortion. Its high isolation also minimises interference between the output ports, ensuring the integrity of each signal.
This power splitter also has excellent directivity to maintain accurate signal distribution in a variety of harsh conditions, meeting your needs for high-performance equipment. Whatever the application, our power splitters provide consistent and reliable performance to help you increase your productivity.
Excellent price/performance ratio
Our in-house R&D team is constantly innovating and committed to developing advanced power dividers that meet the needs of a wide variety of applications. Whether in communications, navigation, radar, military defence or other demanding industries, XST's power dividers deliver superior performance and reliable signal processing.
We understand that our customers want not only high-quality products, but also cost-effective solutions. That's why we optimise our manufacturing processes and stringent quality control to ensure that every product is cost-effective while maintaining high performance.
We are committed to providing you with the most reliable power splitter solutions at the most competitive prices, so that you can enjoy high performance with maximum economic benefits. By choosing us, you will no longer have to worry about the balance between performance and cost.
If you have any needs, please send me us and we will do our best to meet your needs.
