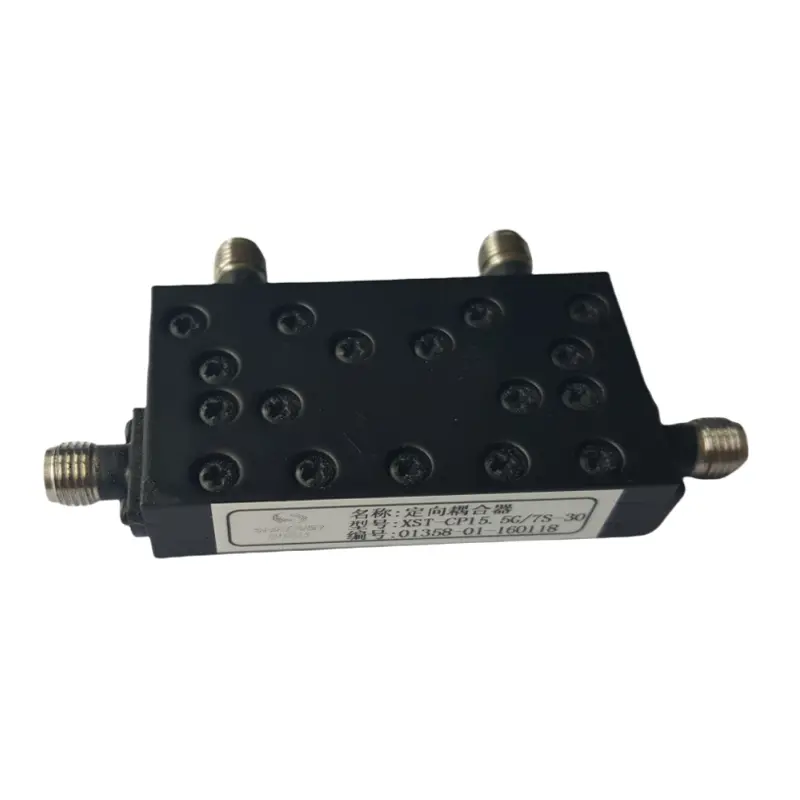

Customised 500MHz-40GHz directional couplers (no custom quantities required, one piece minimum, quality assurance, affordable prices)
product description
Directional coupler is a four-port network widely used in microwave systems with directional power coupling (distribution) elements.The coupling principle of directional coupler is mainly divided into small-hole coupling, parallel coupling, branching coupling, and matched double-T. Directional couplers can be composed of a variety of transmission lines, such as coaxial lines, rectangular waveguides, circular waveguides, strip lines and microstrip lines, and so on, so there is a wide variety.
Technical indicators
| Product Name | Directional coupler |
| Frequency Range | 12GHz -19GHz |
| Insertion Loss | ≤0.5db |
| VSWR | ≤1.3 |
| Coupling | 30dB±1dB |
| Isolation | 45dB |
| port connector | SMA-K |
| Power Handling | 80W |
| Dimension | 48*26.5*10mm |
| Model | Freq.Range（GHz） | Insertion loss（dB） | VSWR | Coupling（dB） | Directivity（dB） | Conn.Type | Power（W） | Dimension（mm） |
| XST-CP112.5M/49S-10 | 0.05-1 | 1 | 1.3 | 10 | 22 | SMA-K | 10W | 30.4*26.4*10 |
| XST-CP1085M/270N-30 | 0.95-1.22 | 0.3 | 1.25 | 30 | 20 | N-K | 100 | 99*42*22.5 |
| XST-CP3G/2N-30 | 45326 | 0.5 | 1.25 | 30 | 16 | thread：N-K | 50W | 69.14*61*21.3 |
| Sub line：SMA-K | ||||||||
| XST-CP2.15G/0.3S-20 | 2-2.3 | 1.5 | 1.3 | 20 | 15 | SMA-K | 10W | 66*29.5*13.44 |
| XST-CP2.35G/0.3N-5 | 2.2-2.5 | 0.5 | 1.3 | 5±0.3 | 15 | N-K | 20W | 55*21*18 |
| XST-CP4G/4N-20 | 45328 | 0.4 | 1.3 | 20 | 20 | thread：N-K | 100W | 102.7*53.5*41.5 |
| Sub line：SMA-K | ||||||||
| XST-CP9G/6N-20 | 45455 | 0.4 | 1.3 | 20 | 20 | thread：N-K | 100W | 62*47*35 |
| Sub line：SMA-K | ||||||||
| XST-CP12G/12N-40 | 45461 | 0.7 | 1.25 | 40 | 15 | thread：N-K | 100W | 51.5*42*18 |
| Sub line：SMA-K | ||||||||
| XST-CP15.5G/19K-10 | 45468 | 1.5 | 1.3 | 10±0.5 | 15 | 2.92mm-K | 10W | 34*17.55*9.85 |
| XST-CP13.5G/3S-15 | 45641 | 0.6 | 1.25 | 15 | 25 | SMA-K | 20W | 130*35.8*24.8 |
| XST-CP24.5G/13K-20 | 18-31 | 1.5 | 1.3 | 20 | 15 | 2.92mm-K | 10W | 28*16*10 |
| XST-CP34G/12K-10 | 28-40 | 1 | 1.5 | 10 | 15 | 2.92mm-K | 10W | 130*35.8*24.8 |
Nots
Performance Characteristics
XST specialises in the development and production of directional couplers for the 50MHz-40GHz frequency band. Our directional couplers are made of rugged materials and equipped with high-quality connectors, such as SMA, N-type, etc., to ensure the stability and reliability of the signal transmission in various complex environments.
Our directional couplers excel in structural design, electrical performance (e.g., high coupling and directivity, low noise), reliability and adaptability, and are designed to be simple and easy to install, as well as easy to follow up with maintenance and replacement, to meet the needs of a variety of complex application scenarios.
High quality and low price
In terms of performance, XST directional couplers are made of top-quality materials, combined with advanced manufacturing processes to ensure that each directional coupler has excellent performance. We have a strict quality control system, and all directional couplers are thoroughly tested before leaving the factory to ensure their stability and service life. XST's directional couplers have won the trust of many customers by demonstrating significant advantages in durability, performance and material selection among similar products.
In terms of price, we always adhere to the concept of ‘high quality does not equal high price’, and XST effectively reduces production costs through large-scale purchasing, optimising production processes, and improving work efficiency. This enables our directional couplers to maintain excellent quality while remaining affordable, meeting the needs of different customers.
According to customer feedback, our directional couplers have obvious market competitiveness in both performance and price, making them the preferred brand in the industry. By choosing XST, you will experience cost-effective and high-quality products that will help you grow your business.
Customisation and Customer Support
XST understands the individual requirements of directional couplers and has tailored them for applications from 500MHz to 40GHz. We work to precisely match every detail of our customers' requirements, from band design to bandwidth tuning, to ensure perfect control of key parameters such as coupling, directivity and loss. Just to meet your unique needs.
From product selection to technical guidance and after-sales service, our elite technical team provides quick one-on-one response and accurate answers to ensure a worry-free customer experience. We understand the importance of service, always listen to customer needs, timely problem solving, professional escort, and together to achieve a better future.
Contact us now, we will spare no effort to help your project success.
