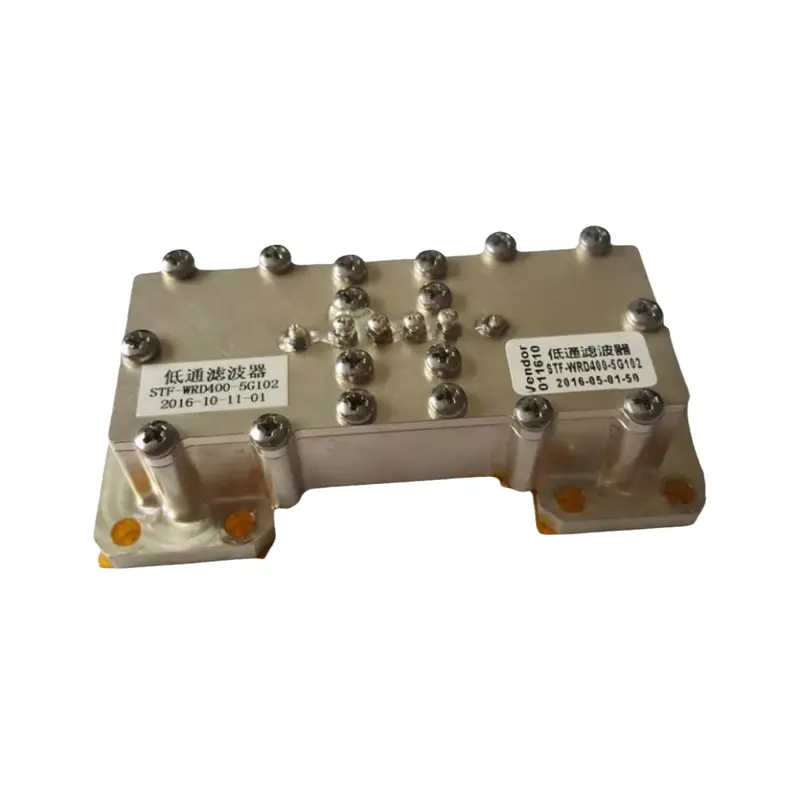

RF Low Pass Filter Passive Components - Various Frequencies Available
Characteristics and Application
4.5GHz-5GHz filters have the following advantages:
1. high selectivity: provide high Q value and good frequency selectivity, which helps to accurately separate the desired signal from the interfering signal.
2. low insertion loss: less signal loss when passing through the filter, ensuring signal strength and quality.
3. high rejection performance: for out-of-band signals have high rejection ability, reduce the impact of interference on system performance.
4. to adapt to the needs of 5G communication: 5G communication technology requires higher data transmission rates and wider bandwidth, 4.5GHz to 5GHz filters can meet these needs.
5. technical diversity: suitable for different application scenarios.
6. Low parasitic effect: the design reduces problems such as parasitic resonance and improves the performance and reliability of the filter.
Technical indicators
| Product Name | Bandpass filter |
| Frequency Range | 4.5GHz-5GHz |
| Insertion loss | ≤0.5dB |
| VSWR | ≤1.3 |
| In-band fluctuation | 0.3dB |
| Out-of-band rejection5 | ≥40dBc@5.5GHz |
| ≥15dB@12-26GHz | |
| port connector | WRD580 standard flange |
| Size | 91*46.8*24.4mm |
| Impedance | 50 OHMS |
Nots
Frequency coordination: Ensure that the frequencies used comply with local radiocommunication regulations and standards to avoid interference with other equipment.
Filter security and privacy: Take the necessary security measures to protect communications from unauthorised access and ensure the security and privacy of data transmissions.
Regulatory compliance: Follow all relevant radiocommunication regulations and standards, including frequency usage, equipment certification, and emission limits.
Filter equipment cooling: In high-frequency operation, equipment may generate more heat and thermal solutions need to be considered.
Interference management: Take measures to minimise interference, such as using high quality shielding materials and filters.
